Custom DAC “ULTRA” R2R NOS (PCM56)

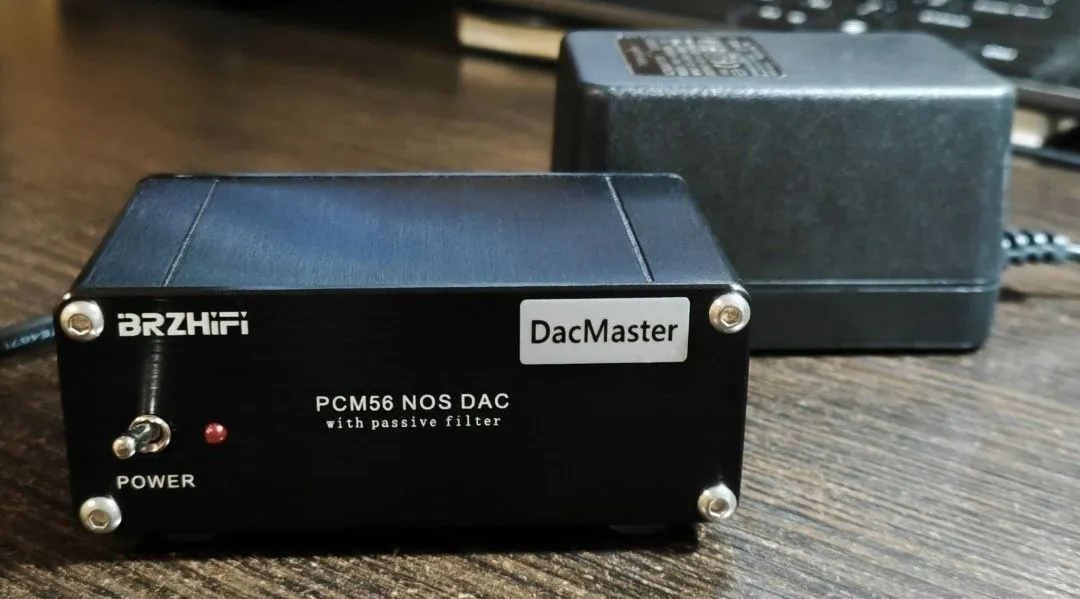

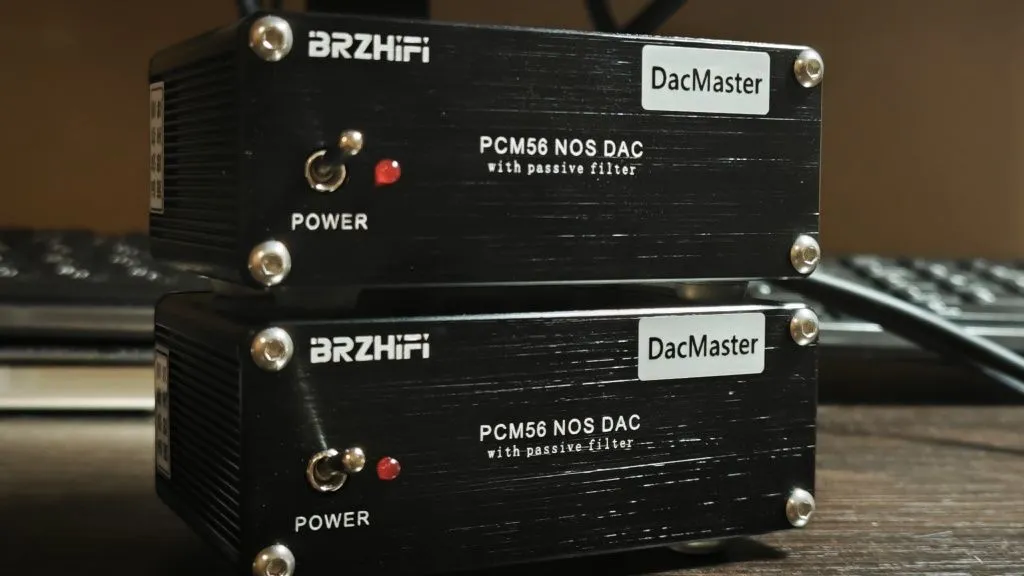

Base device — BRZHiFi PCM56 NOS. You source the donor yourself — I return it upgraded, under warranty.
Why BRZHiFi PCM56 NOS?
One of the most successful, classic, cost-effective PCM56 multi-bit DACs, capable of routing the signal directly without output op-amps or coupling capacitors, elegantly integrated as a matched pair via the now-recognized NOS topology into an ultra-compact, convenient chassis with a highly engaging old-school sound signature. NB: For USB connectivity, this converter requires a USB-to-SPDIF interface, which I will gladly help you select and, if desired, modify!
Specification
- Chip
- 2xPCM56 · Burr-Brown
- Base unit
- BRZHiFi PCM56 NOS
- Type
- 16-Bit Monolithic Dual Multibit
- Audio Performance
- up to ~$500
- Warranty
- 3 mo
- Turnaround
- 2–3 days
Full upgrade$119
This is the final cost for a complete turn-key upgrade. Budget adjustments are only possible when ordering additional exclusive options.

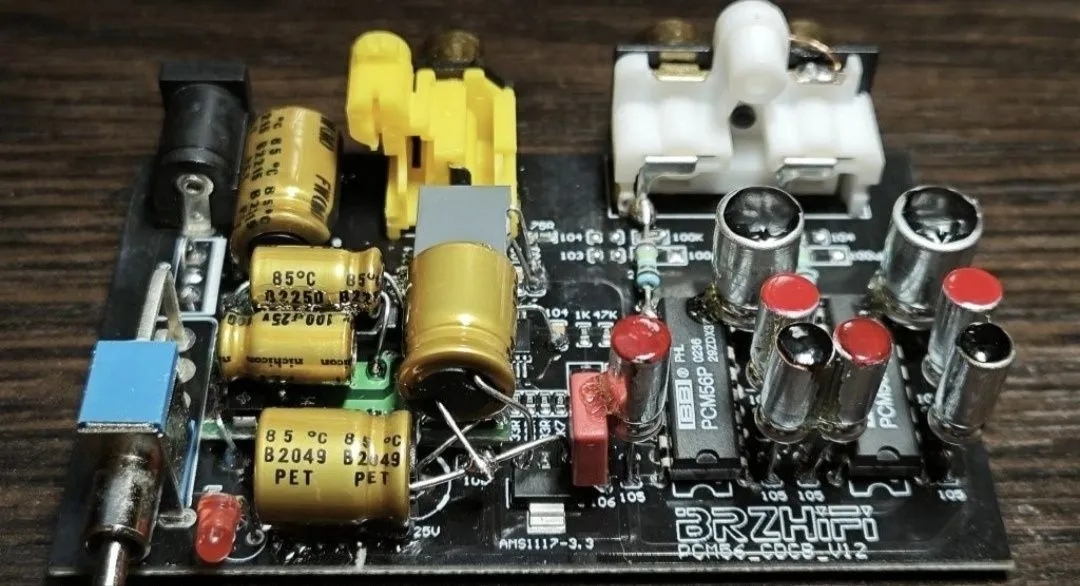

What will be done
- Full replacement of all electrolytic capacitors with genuine "For Audio" components
- Upgrade of power supplies for all stages
- Formulation of a clean negative power rail for the DAC
- Comprehensive overhaul of the layout and circuit design surrounding PCM56 and the SPDIF receiver
- Selection of a high-end main input digital capacitor
What you get
An excellent technical execution and a meticulously refined custom modification that thoroughly rejuvenates the legendary multi-bit digital-to-analog conversion architecture of yesteryear. The number-one DAC choice for those who appreciate a nostalgic presentation at a sensible price point. A linear power supply unit is utterly essential and highly recommended for this device to achieve a harmonious and organic sound signature.
What do my clients say?
My system is on a different level now.
A different level, a whole new dimension. It’s like comparing a rough piece of wood (a blank workpiece) to a finished masterpiece that brings pure aesthetic pleasure. I was just listening to Sting with Eric Clapton — it gave me actual goosebumps, and that is worth everything!
Owner of a PCM56 “ULTRA” DACTelegram I’ve been listening to the DAC with your upgrade... It sounds incredibly engaging, I just don't want to turn it off. Thank you so much!
It sounds clearer, and the texture is much more defined. Especially at the frequency extremes — the bass goes deeper, and the highs are perfectly fine, especially for an R2R layout... But the midrange is just something else entirely! Overall, it delivers a truly mature sound signature.
Owner of a PCM56 “ULTRA” DACTelegram
